ASTM A269 TP316/316L Seamless Stainless Instrumentation Tubing
MaterialSS 316 / 316L (UNS S31600 / S31603) Bright Annealed
Size1/4" to 1" OD (6mm to 25mm OD)
MSS SP-99 / ASME B31.3· Instrumentation Fittings & Manifolds

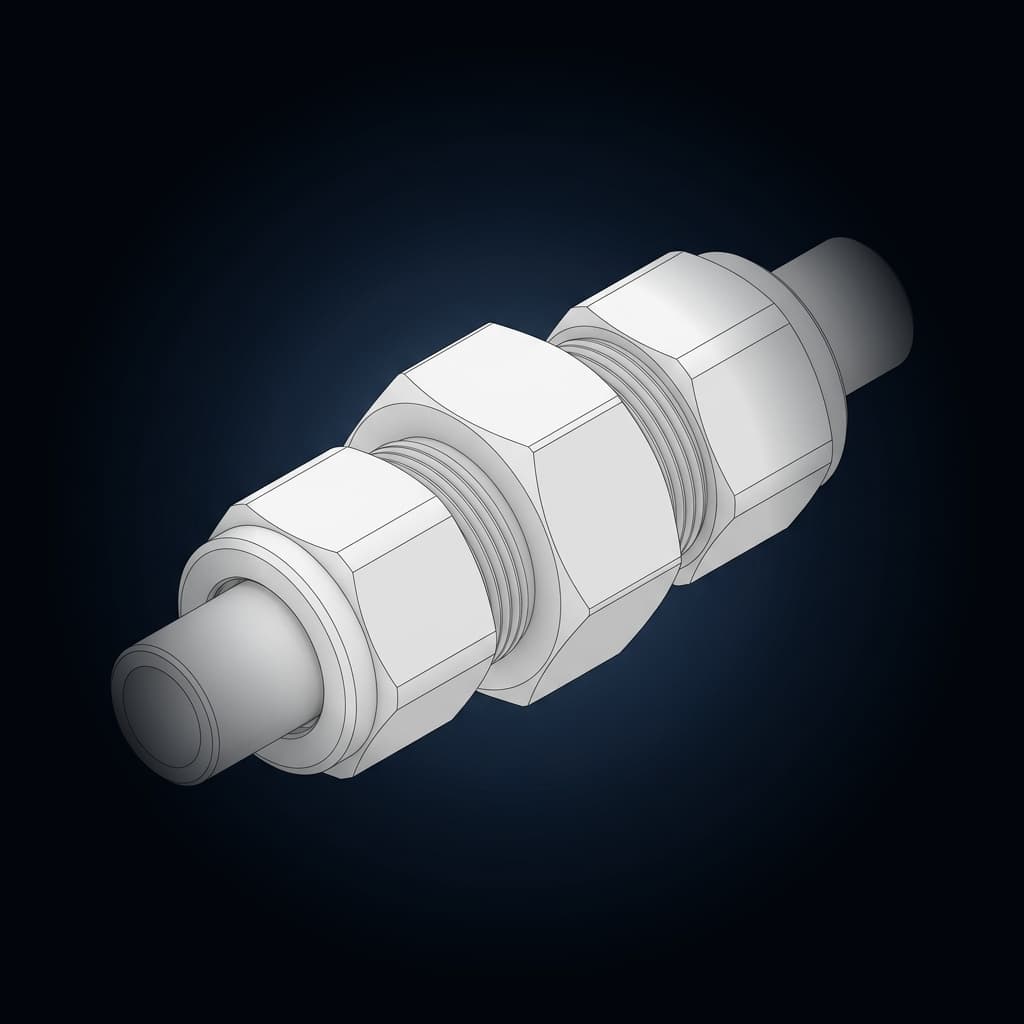

SS316 Double Ferrule Compression Tube Fittings & Manifolds
Differential pressure transmitter hookups, sample extraction cylinders, and offshore pneumatic controls.
100% Stamped Heat Number Traceability
EN 10204 3.1 MTC Supplied
Air Cargo Eligible (24–48h Dispatch)
Technical specifications & verification parameters
| Parameter | Specification value |
|---|---|
| Design & manufacturing standard | MSS SP-99 / ASME B31.3 |
| Product classification | Instrumentation Fittings & Manifolds |
| Material or metallurgy grade | Forged SS316 (ASTM A182 F316) / Barstock A479 |
| Nominal size / dimension range | 1/4" to 1" OD (NPT & BSPT End Connections) |
| Class or pressure rating | 6000 PSI Working Pressure |
| Export HS Code | 73072900 |
| Country of origin | India |
| Dispatch & lead time | Dispatch from supplier stock, confirmed at quotation · Direct sea container transit (3–4 days to UAE/Oman) or priority Air Cargo dispatch (24–48h) for emergency shutdown spares. |
| Inspection & test documentation |
|
Need dual-certification, cut-to-length studs, or CIF pricing for your project?
Instrumentation tubing & compression fitting scope
ASTM A269 TP316/316L bright-annealed seamless instrumentation tubing and precision double-ferrule tube fittings for impulse lines, sampling systems, and pneumatic control panels.
Tubing Specifications
ASTM A269 / ASME SA213 TP316/316L cold-drawn seamless tubing, bright annealed with surface roughness Ra ≤ 0.51 µm (20 µin). Tolerances conforming to ASTM A1016 / A450.
Double-Ferrule Geometry
Precision two-ferrule compression design with rear-ferrule swaging and front-ferrule seal geometry. Hardened threads with silver-plated nut interior to prevent galling on make-up.
Pressure & Temp Ratings
Working pressures up to 6,000 PSI (413 bar) depending on tube wall thickness. Operating temperatures from -196°C cryogenic to +649°C high-temperature service.
Documentation & QA
EN 10204 3.1 MTC with heat numbers, PMI spectral analysis, flattening and flaring ductility tests, and 100% hydrostatic proof testing at 1.5x working pressure.
Related products in this package
Commonly consolidated within the same shipment to Arabian Gulf ports.
Have an EPC requisition or project BOQ?
Upload your Excel, CSV or PDF requisition. Our estimating team in Gujarat prepares line-item CIF pricing, mill certificate terms, and dispatch schedules within 24 hours.
