ASME B16.20 Spiral Wound Metallic Gaskets with SS316 & Graphite
MaterialSS316 Winding Strip with Flexible Graphite / PTFE Filler
Size1/2" to 24" NB (Class 150 to 1500#)
DIN 7444 / DIN 894 / ISO 691· Flange Breakout & MRO Tools

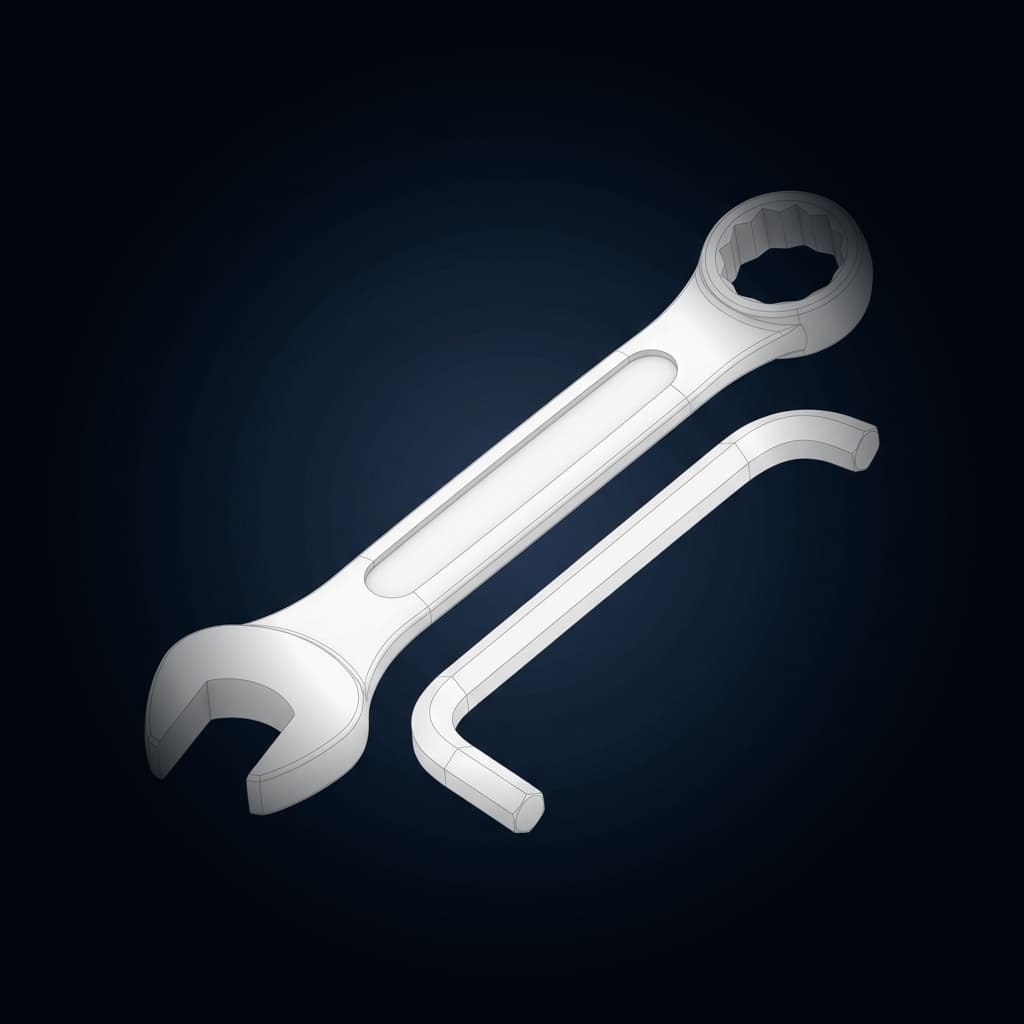

Heavy-Duty Industrial Mechanics Hand Tools & Slogging Spanners
Refinery turnaround flange tightening, structural bolt tensioning, mechanical assembly crews, and rig toolboxes.
100% Stamped Heat Number Traceability
EN 10204 3.1 MTC Supplied
Air Cargo Eligible (24–48h Dispatch)
Technical specifications & verification parameters
| Parameter | Specification value |
|---|---|
| Design & manufacturing standard | DIN 7444 / DIN 894 / ISO 691 |
| Product classification | Flange Breakout & MRO Tools |
| Material or metallurgy grade | Forged Chrome Vanadium (Cr-V) & Non-Sparking Beryllium Bronze |
| Nominal size / dimension range | 19mm to 105mm Ring & Open End (Heavy Slugging Wrench) |
| Class or pressure rating | High-Torque Breakout Rating for Petrochemical Flange Bolting |
| Export HS Code | 82041100 |
| Country of origin | India |
| Dispatch & lead time | Dispatch from supplier stock, confirmed at quotation · Direct sea container transit (3–4 days to UAE/Oman) or priority Air Cargo dispatch (24–48h) for emergency shutdown spares. |
| Inspection & test documentation |
|
Need dual-certification, cut-to-length studs, or CIF pricing for your project?
Flange sealing, gaskets & MRO supply scope
ASME B16.20 spiral wound metallic gaskets, compressed non-asbestos fiber (CNAF) jointing sheets, and heavy-duty industrial mechanical tools consolidated in export shipments.
Gasket Configurations
ASME B16.20 Style CG (outer centering ring) and Style CGI (inner + outer rings) with SS316 metallic winding and high-purity flexible graphite filler.
Pressure Ratings & Flange Fit
Class 150, 300, 600, 900, and 1500# for ASME B16.5 raised-face flanges. Operating temperature range -200°C to +550°C.
Industrial MRO Hand Tools
Heavy-duty chrome vanadium combination wrenches, striking/slogging ring spanners (DIN 7444) for flange bolting, and torque multipliers.
Export Packing & Certification
Manufacturer certificates of conformity for metallic strip and filler composition, batch compression recovery test reports, and sea-worthy export palletizing.
Related products in this package
Commonly consolidated within the same shipment to Arabian Gulf ports.
Have an EPC requisition or project BOQ?
Upload your Excel, CSV or PDF requisition. Our estimating team in Gujarat prepares line-item CIF pricing, mill certificate terms, and dispatch schedules within 24 hours.
